| Item |
Parameter |
| Model |

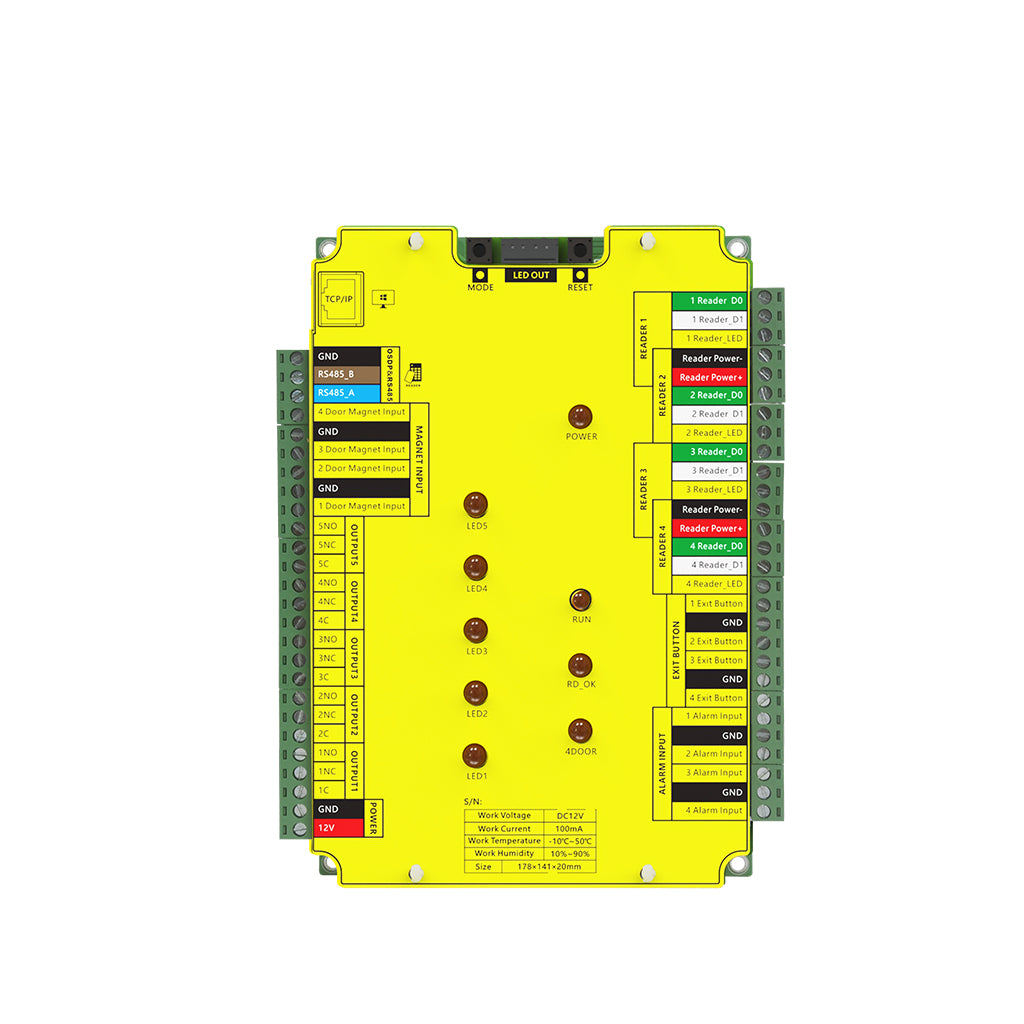

EC5- ESC16-PW1-BX2 |
| Communication Mode |
10 Base-T RJ45 ethernet interface (TCP/IP) with status LED indications |
| No. of Floors |
Can be expanded in multiple of 69 floors. |
| Support Elvator Expansion Board |
4 (4 * 16 floors) |
| User Record |
20000 / 70000 |
| CPU |
16 bit micro controller running @72 MHz |
| Program Memory |
256 Kbytes |
| Data Memory |
4 MB flash |
| Database |
50,000 times stamped events storage capacity |
| RTC |
Non volatile real time clock calendar, Data retention for 10 years without external power |
| Reader Interface |
Weigand configurable from 26 bits to 58 bits/clock data, 1 reader port |
| Reader Control |
LED control, buzzer control and reader tamper switch input |
| Relay Interface |
Up to 5 relay outputs for floor |
| Input/output |
1 Magnetic / 1 exigency button with extension board |
| Serial Port |
RS 485 |
| Working Temperature and Humidity |
-10°C-50°C / 10%-90% |
| Software |
Safesmart Expert Mode |
| Power Supply |
DC12V / 400mA |
| Size |
EC5: L171×W141×H20mm |
