Product Description

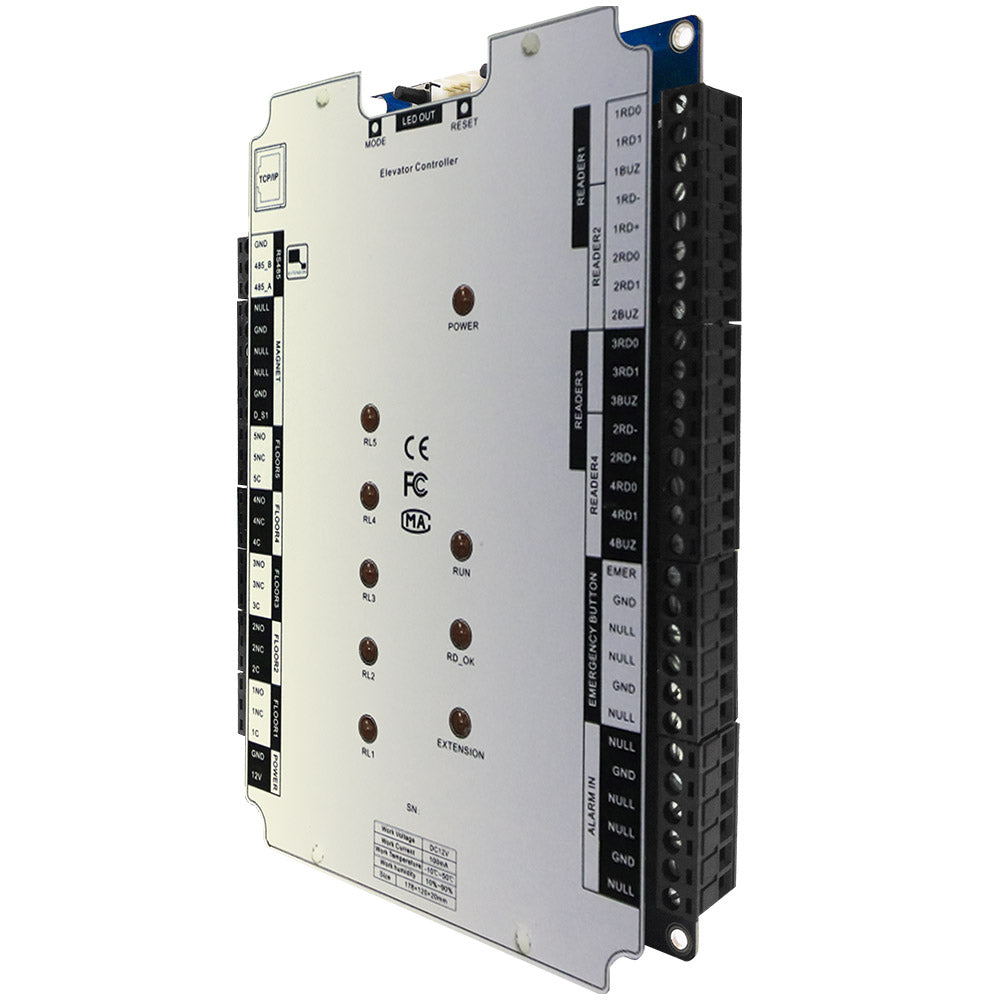

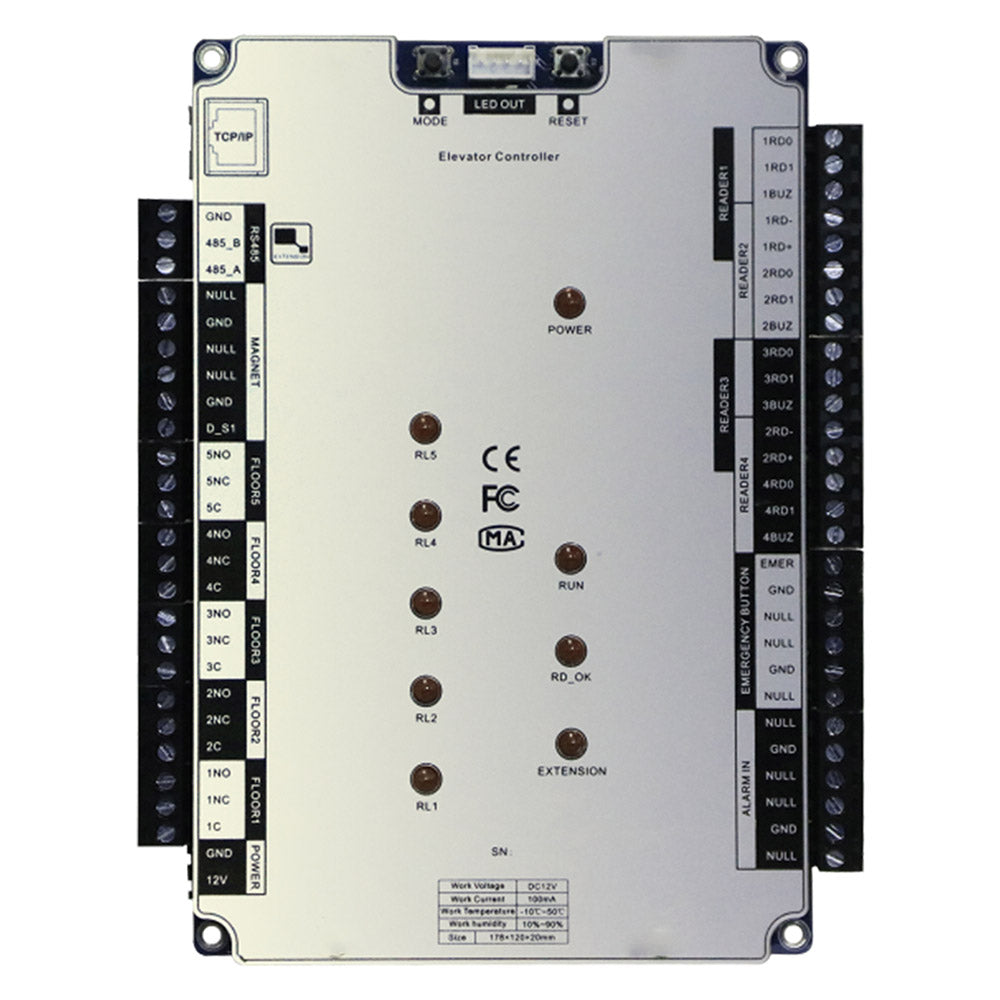

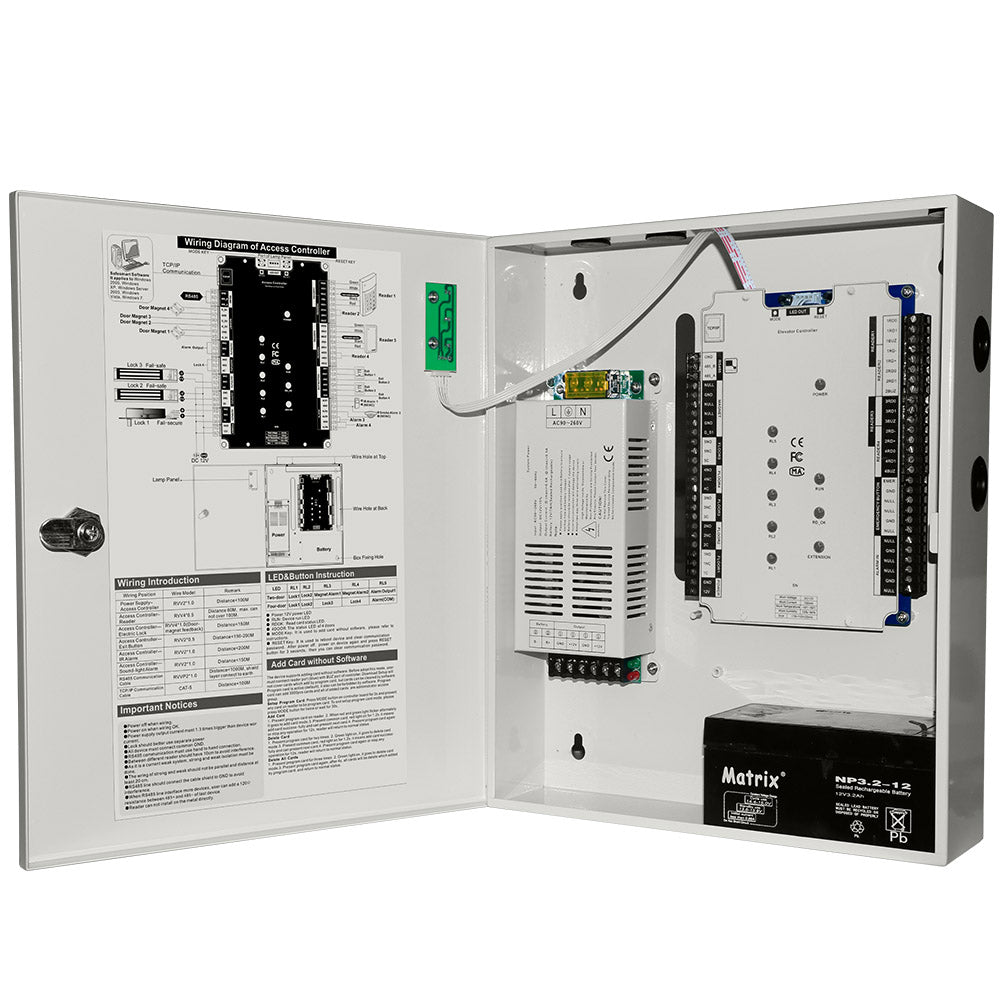

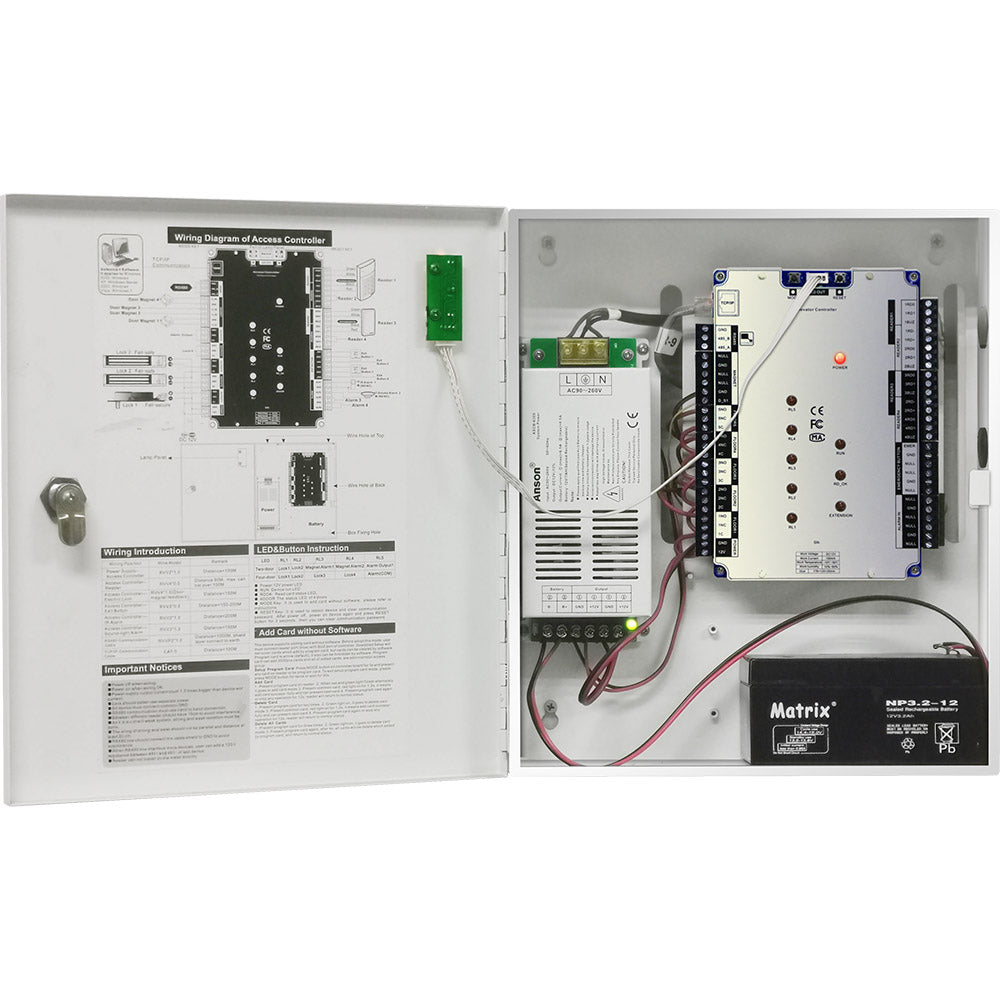

ASC-DL24 is a 5-floor elevator controller, which can be used with the expansion board to control higher floors.
Enables you to effectively manage tenant and visitor access throughout your building.
Typically, these boards can only restrict access to a certain number of floors, e.g., 69 floors in this case, but can be expanded with extension boards that can control another 16 floors each.
Features That Make a Difference:

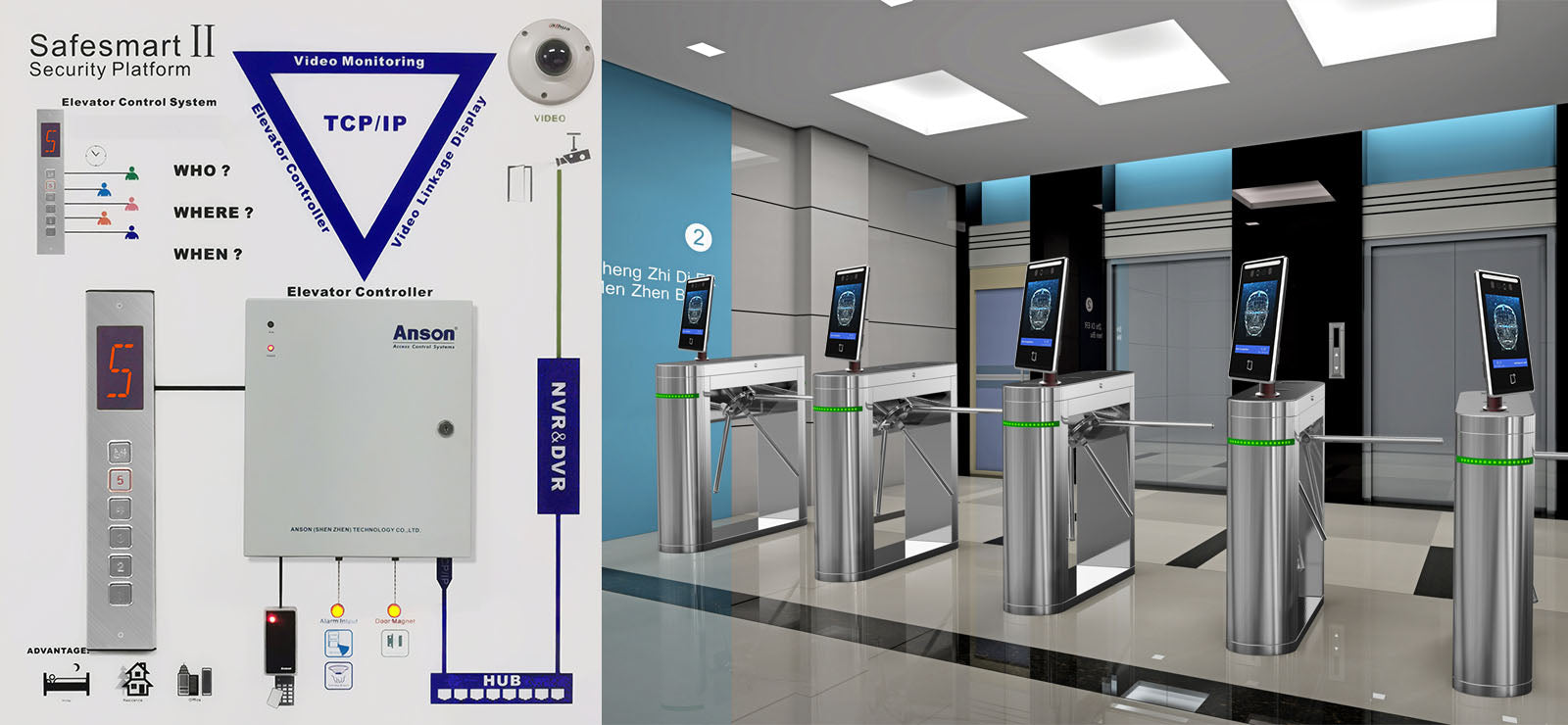

• Assigns passengers to an elevator that provides the most efficient route to their destination
• Optimize total time from lobby walk to office arrival
• Restrict unauthorized access to specific floors and elevator entrances based on personnel clearances

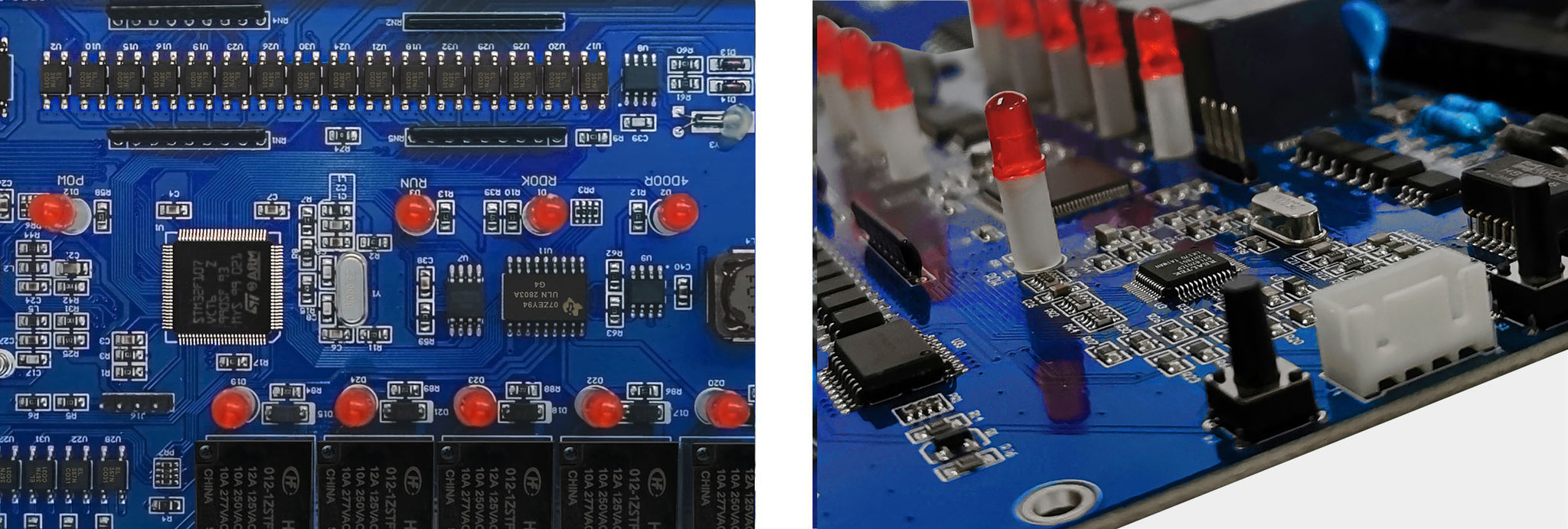

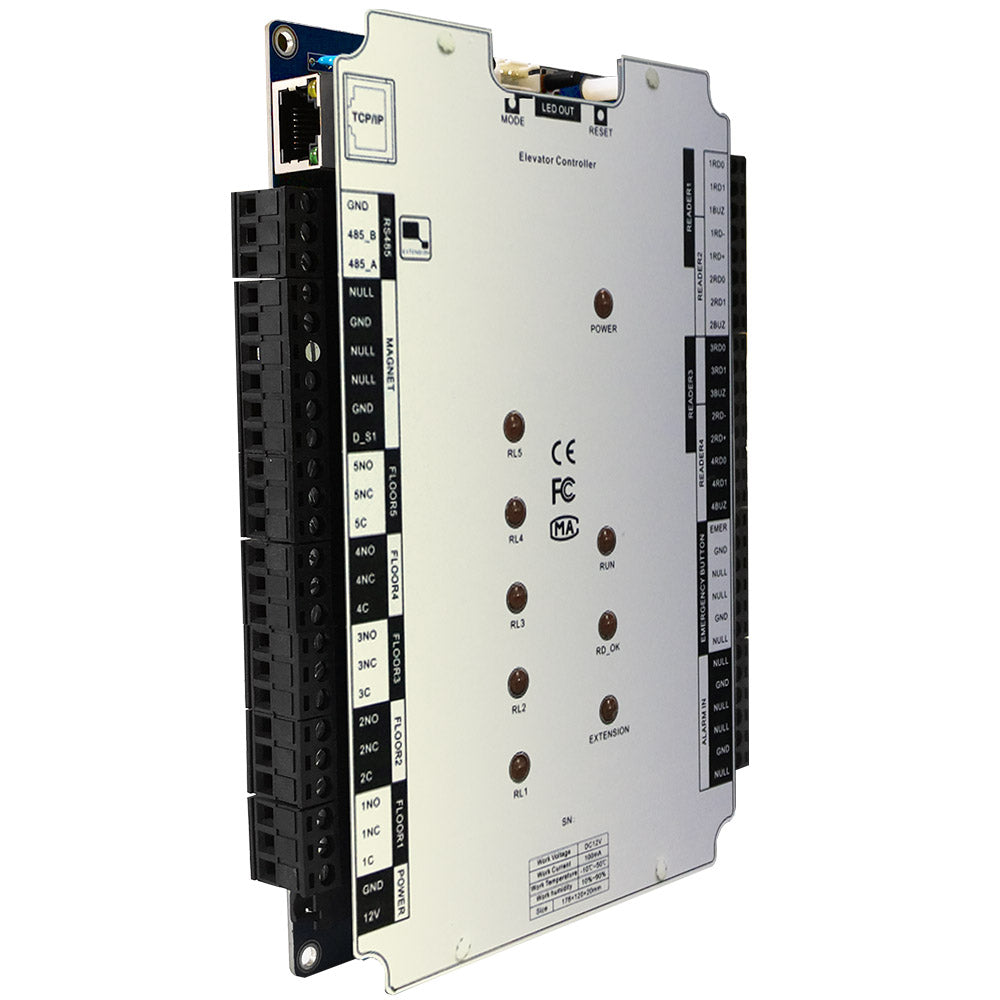

Powerful Fault-tolerant Ability
Reader interface adopts double protection design, which minimizes the damage to controller by mis-operation. Especially in case data wire, power supply wire and short circuited, the controller will automatically switch off and then recover after the problem is fixed. With reverse voltage protection adopted in the power supply, the controller will not suffer damage when input connection is incorrect.

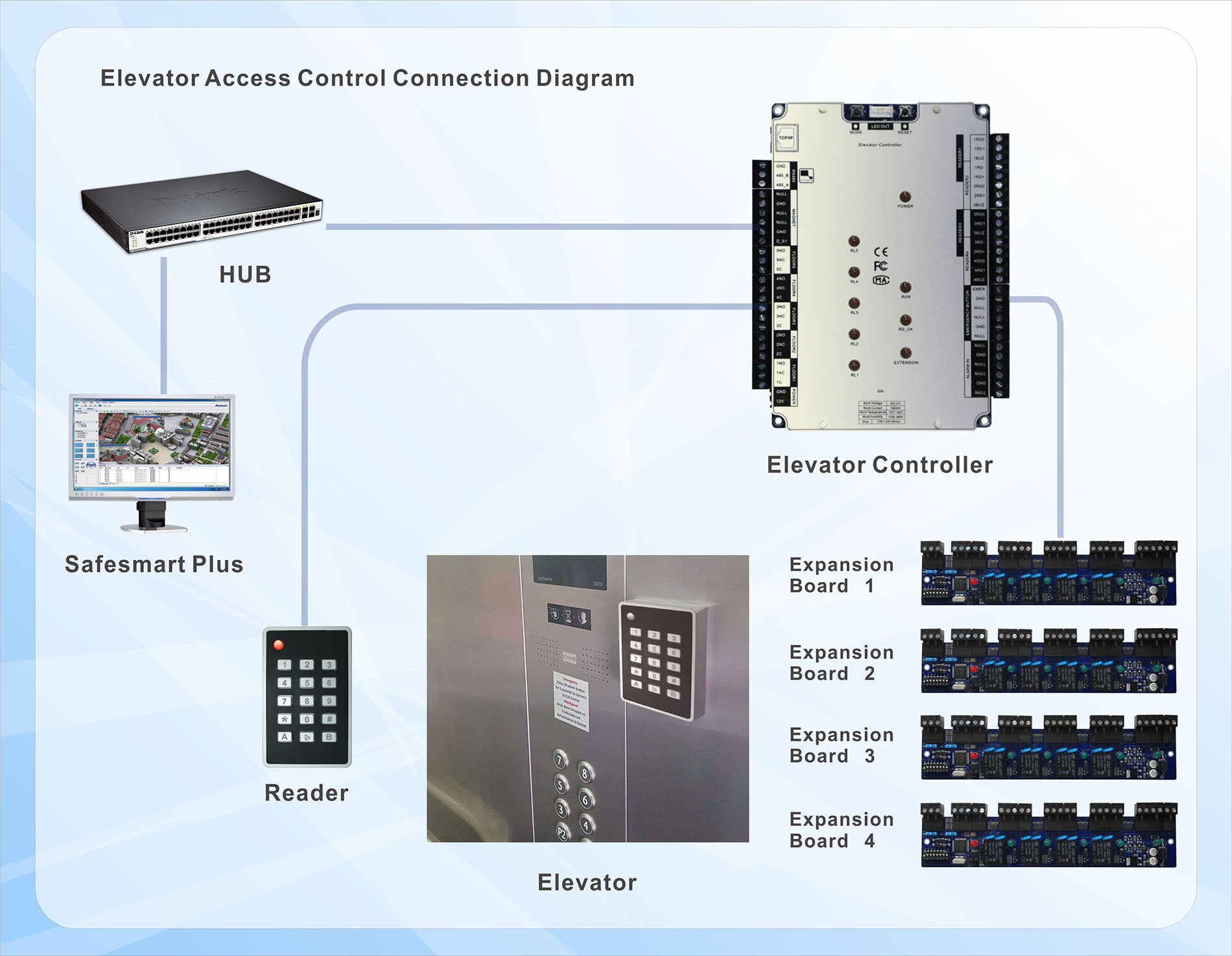

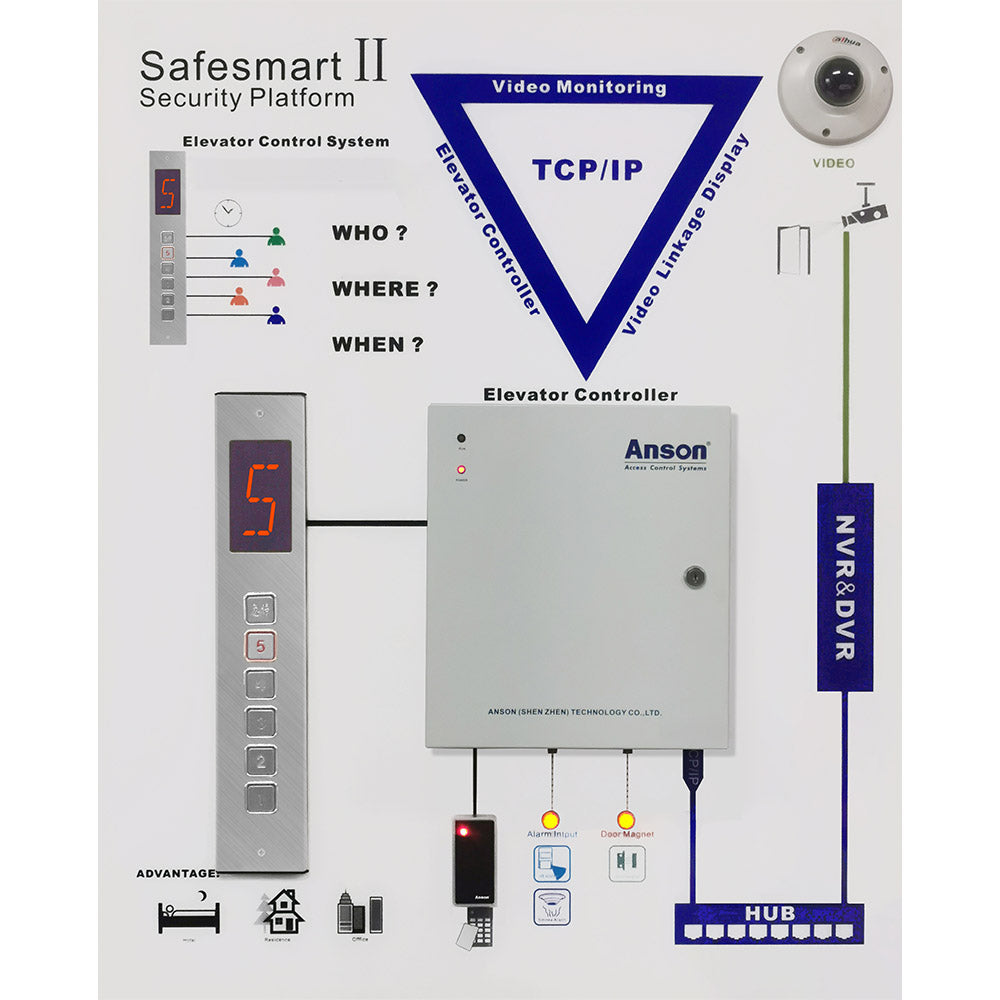

Elevator Access Control Panel

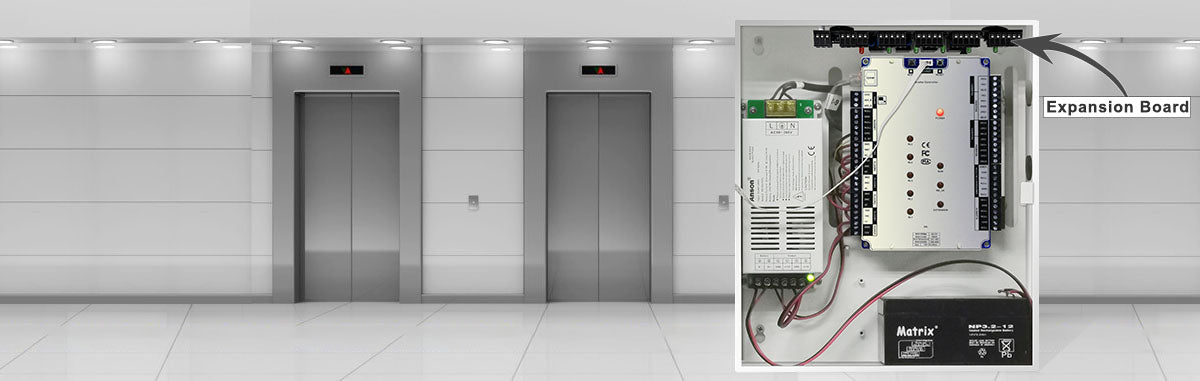

Elevator access control panels connect to three different main devices:
1. The elevator control buttons
2. The card reader
3. The access control system

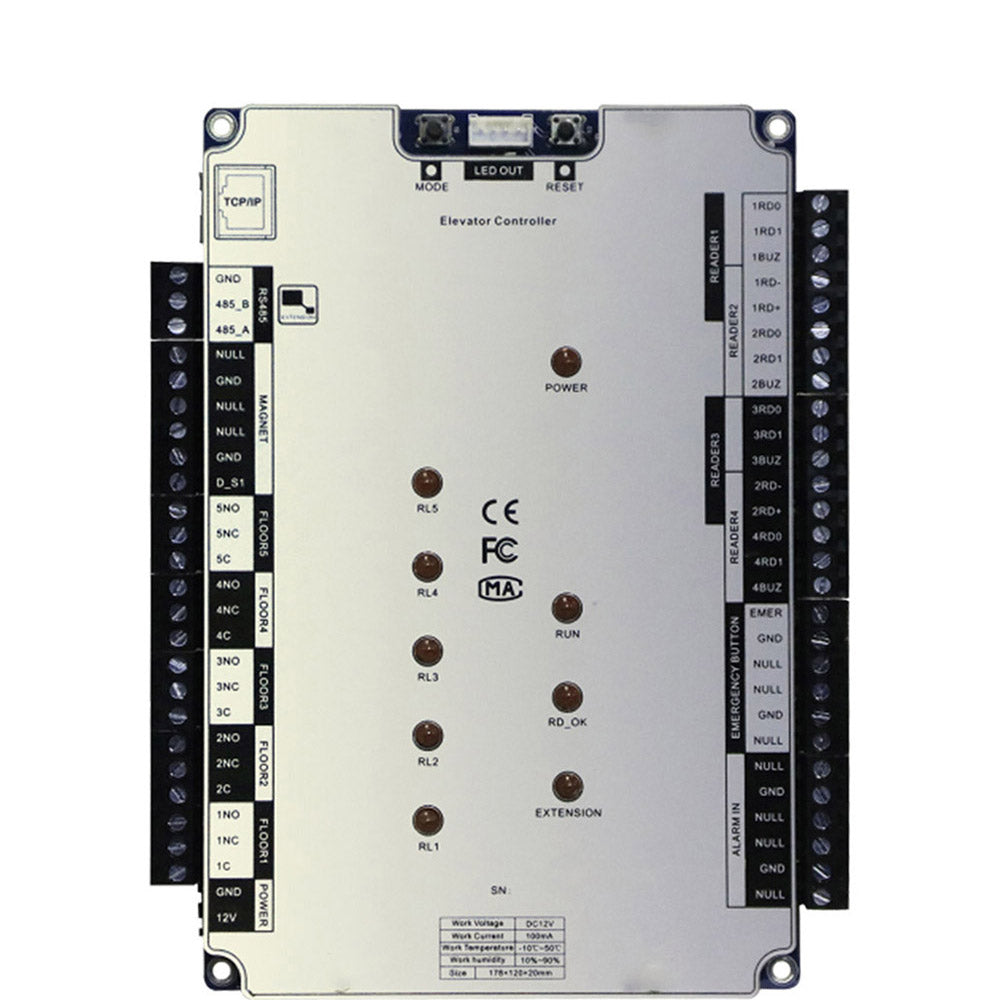

Product Parameter
| Item | Parameter |
|---|---|
| Model | ASC-DL24 |
| Communication Mode | 10 Base-T RJ45 ethernet interface (TCP/IP) with status LED indications |
| No. of Floors | Can be expanded in multiple of 69 floors. |
| Support Elvator Expansion Board | 4 (4 * 16 floors) |
| User Record | 20000 / 70000 |
| CPU | 16 bit micro controller running @72 MHz |
| Program Memory | 256 Kbytes |
| Data Memory | 4 MB flash |
| Database | 50,000 times stamped events storage capacity |
| RTC | Non volatile real time clock calendar, Data retention for 10 years without external power |
| Reader Interface | Weigand configurable from 26 bits to 58 bits/clock data, 1 reader port |
| Reader Control | LED control, buzzer control and reader tamper switch input |
| Relay Interface | Up to 5 relay outputs for floor |
| Input/output | 1 Magnetic / 1 exigency button with extension board |
| Serial Port | RS 485 |
| Working Temperature and Humidity | -10°C-50°C / 10%-90% |
| Software | Safesmart Expert Mode |
| Power Supply | DC12V / 400mA |
| Size | L171×W141×H20mm |
